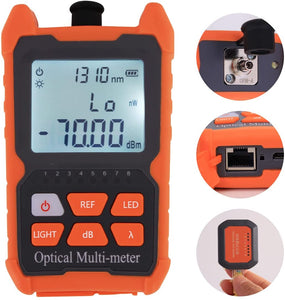

Optical Fiber Power Meter with RJ45 Test, Fiber FC/SC/ST Universal Interface Connector Tester Equipment for CCTV

Optical Fiber Power Meter with RJ45 Test, Fiber FC/SC/ST Universal Interface Connector Tester Equipment for CCTV

Shipping calculated at checkout.

Specification
1.OPM Standard wavelength: 850,980,1300,1310,1490,1550,1625,1650nm.
2.FC/SC/ST universal 2.5mm interface OPM,FC-SC connectors included.
3.Detector Type: InGaAs;Measurement Range:-70~6dBm;Accuracy:±0.05dB.
4.Display resolution:mW:0.1%,dBm:0.01dBm,Working temperature:-10~+60℃.
5.supporting simultaneous linear (mW) and non-linear (dBm) display.
6.Auto off time:10Min,Battery continuous operating time:≥72h

Package Include
1x Fiber Optical Power Meter;Dimension(mm):11.2x6.6x3cm,Weight:140g.
1x RJ45 test module,Long Press Button DB,The RJ45 Testing Fuction will Open.
1x User Manual,Battery does not included due to shipping restriction.
