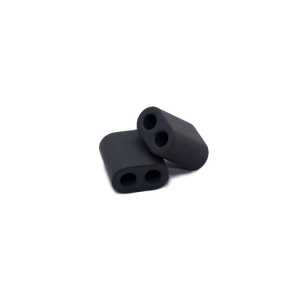

BN-61-202 Binocular (Multi-Hole) Ferrite Core
Physical Dimensions A=0.525 in / 13.3 mm +/- 0.6 mm B=0.565 in / 14.35 mm +/- 0.5 mm C=0.295 in / 7.5 mm +/- 0.35 mm E=0.0.225 in / 5.7 mm +/- 0.25 mm H=0.150 in / 3.8 mm +/- 0.25 mm |
| AL=475 +/- 20 % uH=(AL*Turns2)/1000 |
| Temperature Stability (ppm /°C) = 1000 |
| Color Code = dull black |
| Application Freq Range Wideband Transformers 20 - 500 MHz High-Q Inductor 0.2 - 10 MHz RFI Suppression - above 20 MHz |
