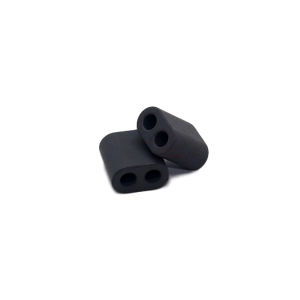

BN-43-202 Binocular (Multi-Hole) Ferrite Core

BN-43-202 Binocular (Multi-Hole) Ferrite Core

  • $0.75
    Unit price per
Shipping calculated at checkout.


Physical Dimensions



A=0.525 in / 13.3 mm +/- 0.6 mm
B=0.565 in / 14.35 mm +/- 0.5 mm
C=0.295 in / 7.5 mm +/- 0.35 mm
E=0.225 in / 5.7 mm +/- 0.25 mm
H=0.150 in / 3.8 mm +/- 0.25 mm
 AL=2200 +/- 20 %      uH=(AL*Turns2)/1000
Temperature Stability (ppm /°C) = 12500
Color Code = shiny black
Application Freq Range
Wideband Transformers 5 - 400 MHz
Power Transformers 0.5 - 30 MHz
RFI Suppression 5 - 500 MHz
