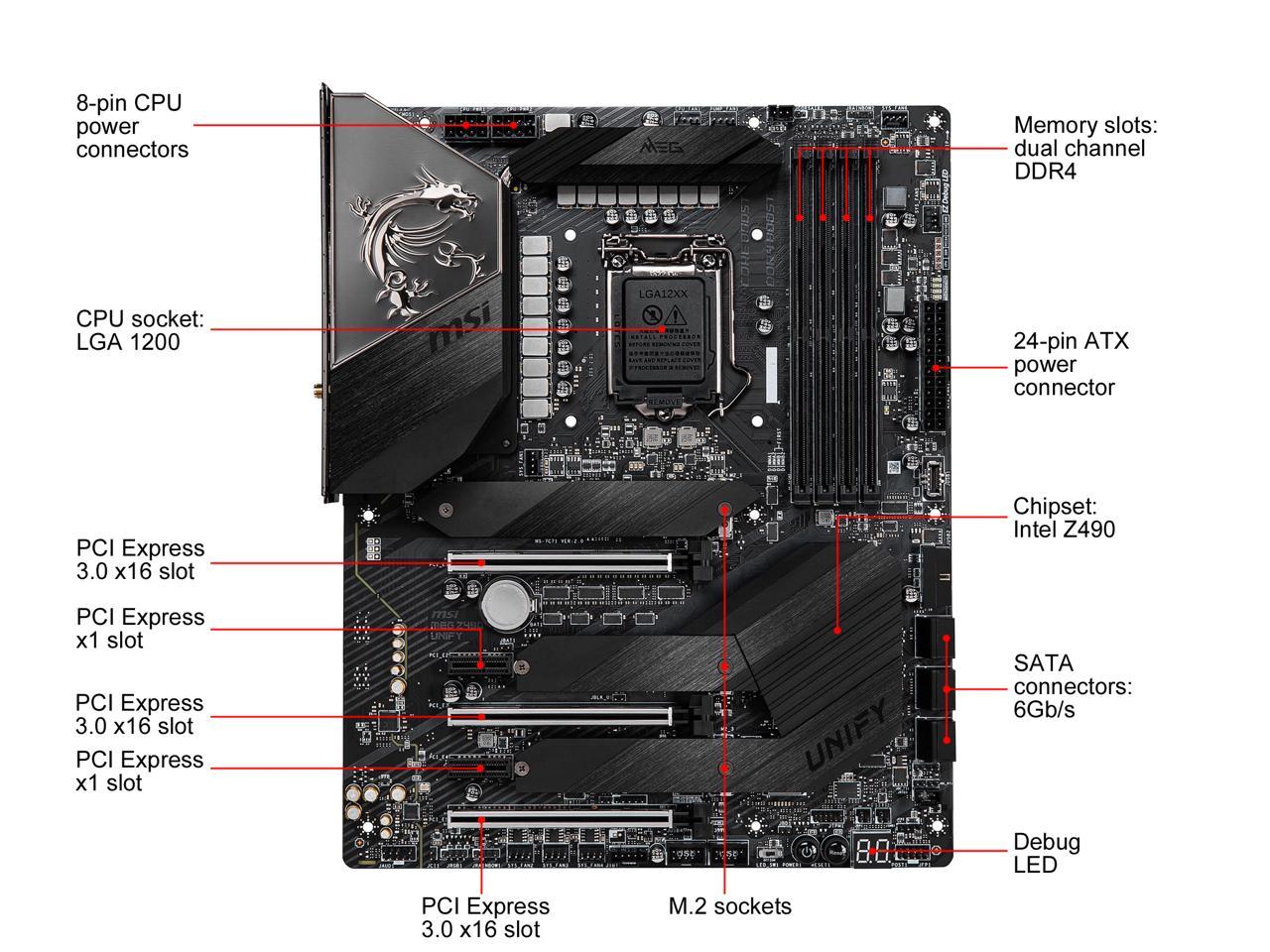

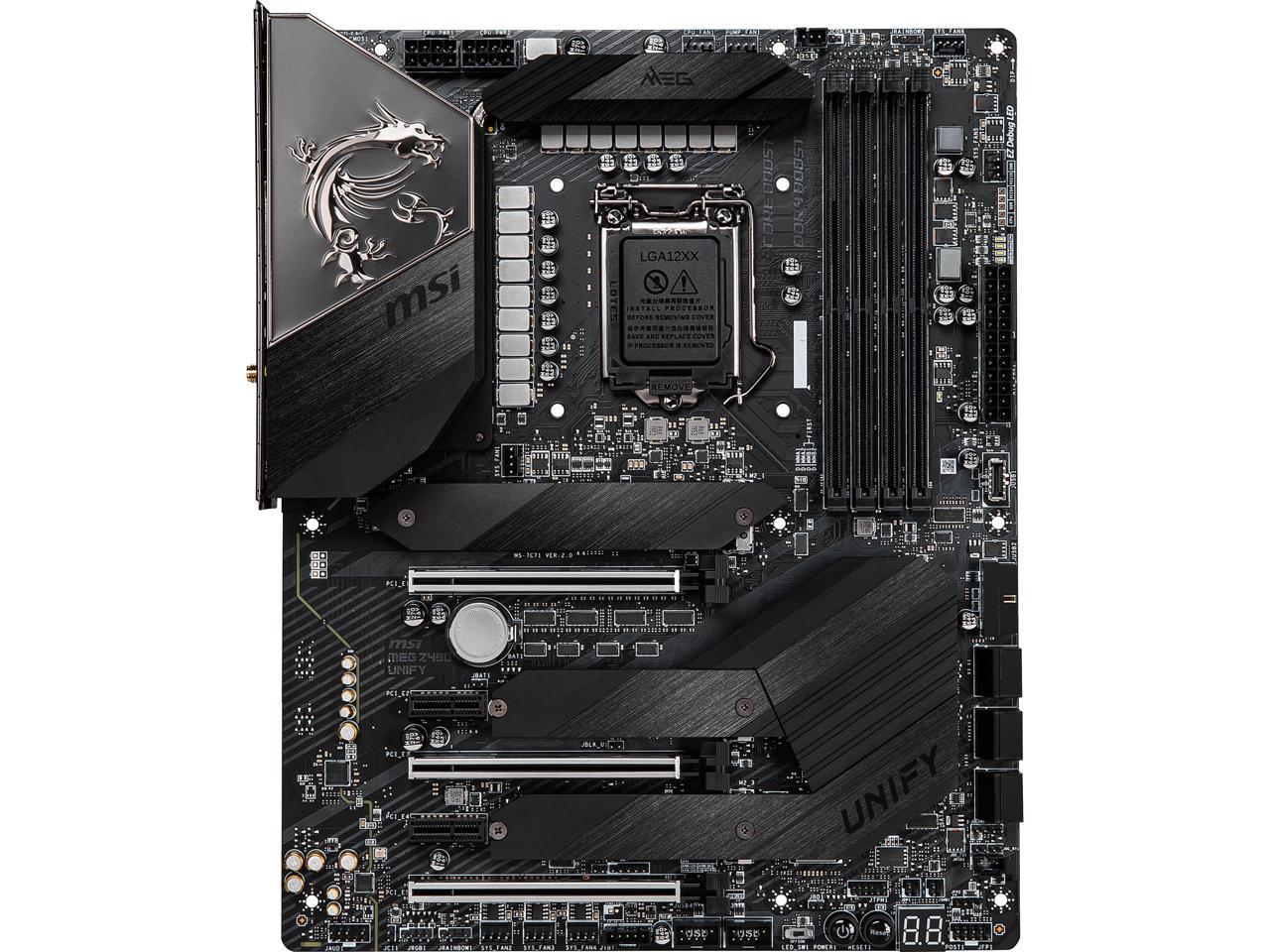

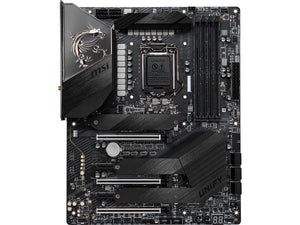

MSI MEG Z490 UNIFY LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

MSI MEG Z490 UNIFY LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

$399.95
Unit price per
Save $50

Shipping calculated at checkout.

Model
Brand	MSI
Model	MEG Z490 UNIFY

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket * Onboard graphics output are disabled when using F SKU processors.

Chipsets
Chipset	Intel Z490

Memory
Number of Memory Slots	4×288pin
Memory Standard	Supports 1R 2933/ 2666/ 2133 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4500+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	3 x PCIe 3.0 x16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4)
PCI Express x1	2 x PCIe x1 slots (from PCH)

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s ports* * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.
M.2	3 x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280/22110 storage devices* M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/2260/2280 storage devices** M2_3 supports up to PCIe 3.0 x4, 2242/2260/2280 storage devices * SATA2 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. ** SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_2 slot.
Intel Optane Ready	Intel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220
Audio Channels	7.1-Channel High Definition Audio Supports Optical S/PDIF output

Onboard LAN
LAN Chipset	Realtek RTL8125B
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified The Wireless module is pre-install in the M2 (Key-E) slot
Bluetooth	Supports Bluetooth 5.1, FIPS, FISMA

Rear Panel Ports

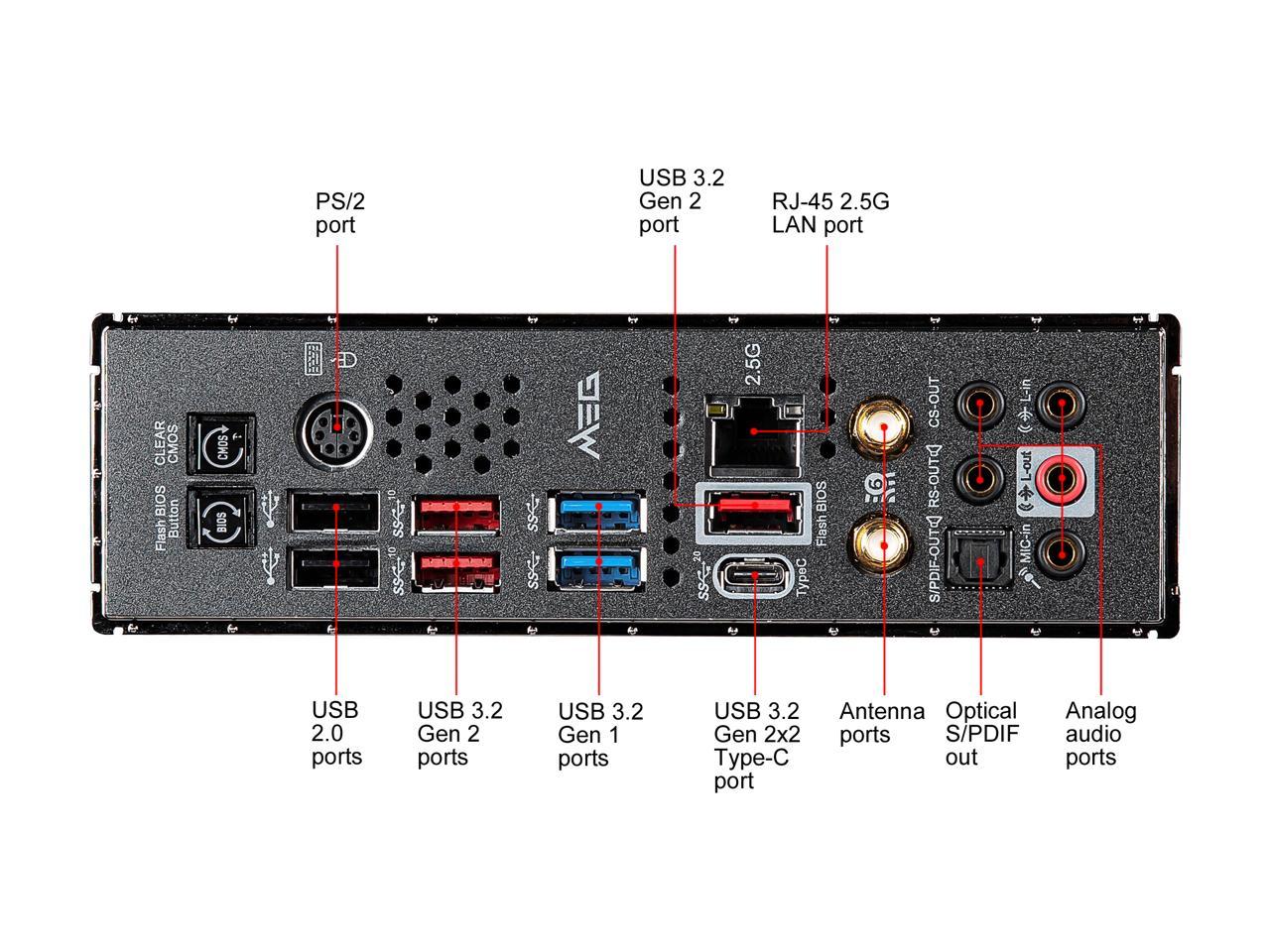

Back I/O Ports	1 x Optical S/PDIF Out / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.2 Gen 2x2 Type-C / 2 x USB 2.0/1.1 / 2 x USB 3.2 Gen 1 / 3 x USB 3.2 Gen 2 Type-A / 5 x Audio Jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 6 x 4-pin system fan connectors 1 x front panel audio connector 2 x system panel connectors 1 x Chassis Intrusion connector 1 x slow mode jumper 1 x power button 1 x reset button 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR LED connector 1 x RTD3 connector 1 x TBT connector * * Thunderbolt card need support RTD3

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
